ED-Pipeline high shearing dispersing emulsifier pump

Home > Product > Dispersers > Inline disperser > ED-Pipeline high shearing dispersing emulsifier pump

ED-Pipeline high shearing dispersing emulsifier pump

Introduction
Advantages
Applications
Technical datas

Pipeline high shear dispersing emulsifier effectively,quickly and evenly disperse a phase or phases to another consecutive phase,usually,these phases are dissolvable to each other.The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect,therefore,the material in the narrow slotamong stator and rotor receives strong forces from mechanical and liquid shearing,centrifugal force,pressing,liquid fraction,clashing,tearing and rush water.The dissolvable solid,liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made.

Applications

color pastes
paint
ink
ice cream
vegetable oil
cream

1.Dispersed suspension:unsoluble solid or liquid forms finer partical blended solution or suspended solution
Emulsification:unsoluable liquid together with liquid does not separate (cream,ice cream,animal oil,vegetable oil,silicon oil ,light oil )
2.Homogeneity:make emulsification and suspended grain size finer with more even distribution(cream,flavoring ,juice,jam,typing ink,enamel paint )

Advantages
1.Mass production suitable for continuous production of 2.industrialized assembly line
3.Small diameter range and highly even
4.Time saving ,highly efficient and energy saving
5.Low noise,stable operation
6.Reduced quality difference between lots
7.Product is fully dispersered and sheared
8.Deliver in short distance with low life
9.Easy operation ,convenient maintenance
10.Automatic control

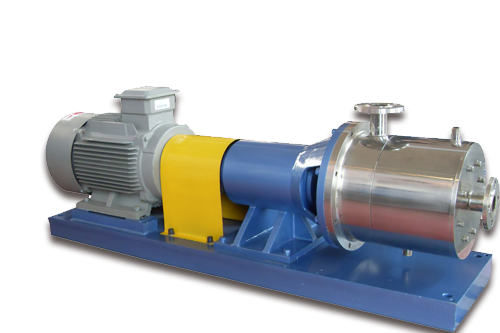

ED pipeline high shear dispersing emulsifier effectively
ED pipeline high shear dispersing emulsifier effectively-1
ED pipeline high shear dispersing emulsifier effectively
ED pipeline high shear dispersing emulsifier effectively-3

Technical datas

Model	power （kw）	speed （rpm）	Flow（m³/h）	Inlet	Outlet
ED-4	4	3000	2-14	DN40	DN32
ED-75	7.5	3000	8	DN50	DN50
ED-110	11	3000	12	DN65	DN50
ED-220	22	3000	22	DN65	DN80
ED-370	37	1500	30	DN100	DN100
ED-550	55	1500	40	DN125	DN100
ED-750	75	1500	55	DN125	DN100
ED-900	90	1500	65	DN125	DN100
ED-1100	110	1500	80	DN150	DN125

1.Mass production suitable for continuous production of 2.industrialized assembly line
3.Small diameter range and highly even
4.Time saving ,highly efficient and energy saving
5.Low noise,stable operation
6.Reduced quality difference between lots
7.Product is fully dispersered and sheared
8.Deliver in short distance with low life
9.Easy operation ,convenient maintenance
10.Automatic control

1.Dispersed suspension:unsoluble solid or liquid forms finer partical blended solution or suspended solution
Emulsification:unsoluable liquid together with liquid does not separate (cream,ice cream,animal oil,vegetable oil,silicon oil ,light oil )
2.Homogeneity:make emulsification and suspended grain size finer with more even distribution(cream,flavoring ,juice,jam,typing ink,enamel paint )

Model	power （kw）	speed （rpm）	Flow（m³/h）	Inlet	Outlet
ED-4	4	3000	2-14	DN40	DN32
ED-75	7.5	3000	8	DN50	DN50
ED-110	11	3000	12	DN65	DN50
ED-220	22	3000	22	DN65	DN80
ED-370	37	1500	30	DN100	DN100
ED-550	55	1500	40	DN125	DN100
ED-750	75	1500	55	DN125	DN100
ED-900	90	1500	65	DN125	DN100
ED-1100	110	1500	80	DN150	DN125
