T turbine horizontal bead mill （sand mill）

Home > Product > Mills > horizontal bead mill（sand mill） > T turbine horizontal bead mill （sand mill）

T turbine horizontal bead mill （sand mill）

Introduction
Features
Applications
Technical data

T turbine horizontal bead mill are the ultra- fine nanometer wet grinding mill.

Optimized structure of the accelerator will pass more powerful energy to the grinding media in the chamber. Owing to its high efficiency and superfine performance, it is the ideal mode for users in packaging printing ink, color paste, car paint, nano- materials, electronic materials, etc.

Features

1.Uniform distribution of the grinding beads density in the grinding chamber for maximum effectiveness.

2.Holistically optimized flow guidance for optimum residence time distribution of the particles
3.Metallic and ceramic variants available
4.Suitable for the production of all types of nano-suspensions
5.Suitable for pass mode and circulation mode
6.Long lifetime of the static discharging screen separator
7.Optimal energy input with effective cooling system
8. High security property, with auto-stop function when pressure and temperature value is up to the set limit or coolant level of mechanical seal is lower than required.
9. VFD control and PLC are optional
10.Low noise level
11. High reliability & working stability, and elongated life.

Applications

Inkjet ink
Coatings
Dyes
color pastes
Pigment preparations
pigment production
Pesticides
polishing agents for electronic components

Technical data

Parameter model	Total volume L	Working volume L	Power Kw	Batch L	Cooling Water L/h	Max line Velocity m/s
T6	9	6	11	30~100	1000	14
T15	20	15	22	50~200	1500	14
T30	40	30	45	100~400	2000	14
T50	75	50	55	300~1000	3000	15

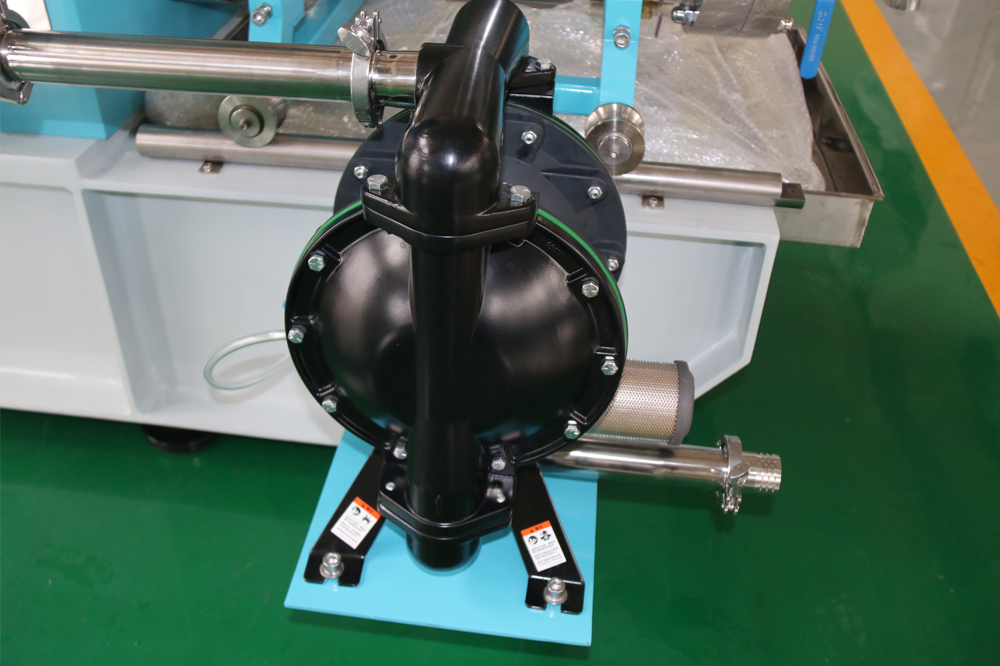

IngersoII Rand diaphragm pump
PLC
turbine bead mill
sand mill electricity box

1.Uniform distribution of the grinding beads density in the grinding chamber for maximum effectiveness.
2.Holistically optimized flow guidance for optimum residence time distribution of the particles
3.Metallic and ceramic variants available
4.Suitable for the production of all types of nano-suspensions
5.Suitable for pass mode and circulation mode
6.Long lifetime of the static discharging screen separator
7.Optimal energy input with effective cooling system
8. High security property, with auto-stop function when pressure and temperature value is up to the set limit or coolant level of mechanical seal is lower than required.
9. VFD control and PLC are optional
10.Low noise level
11. High reliability & working stability, and elongated life.

Inkjet ink

Coatings ∙

Dyes

color pastes

Pigment preparations

pigment production

Pesticides

polishing agents for electronic components ∙etc.

Parameter model	Total volume L	Working volume L	Power Kw	Batch L	Cooling Water L/h	Max line Velocity m/s
T6	9	6	11	30~100	1000	14
T15	20	15	22	50~200	1500	14
T30	40	30	45	100~400	2000	14
T50	75	50	55	300~1000	3000	15
